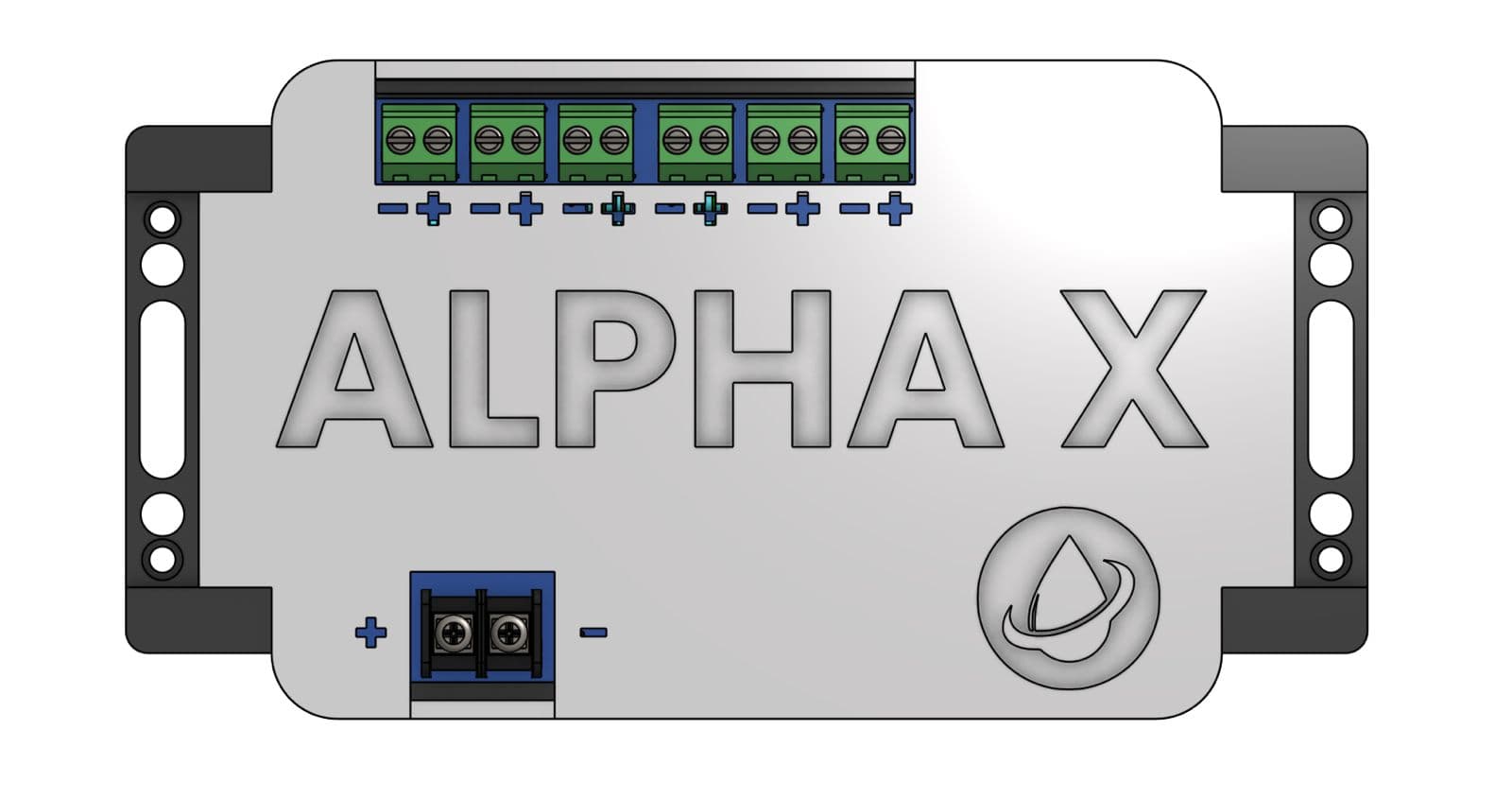

Alpha X
Alpha X is a versatile, multi-channel industrial data acquisition and monitoring system designed for seamless integration into any industrial setup. It supports 1, 3, or 6 channel configurations and communicates over 4–20 mA current loop, RS485 MODBUS RTU, and CAN bus protocols. With inbuilt short-circuit prevention (24V 500mA quick-blow fuse) and reverse voltage protection, Alpha X is built to withstand the rigours of industrial environments while delivering reliable, real-time data to your monitoring platform.
Key Features
- 1 / 3 / 6 Channel Configurations
- 4–20 mA, RS485 MODBUS RTU & CAN Bus
- 24V DC Supply with Inbuilt Protection
- Plug-and-Play with Reflow Console
| Model | ALPHA X |
| Channels | 1 / 3 / 6 |
| Protocols Supported | 4–20 mA Current Loop, RS485 MODBUS RTU, CAN Bus |
| Supply Voltage | 24 V DC |
| Power Inputs | 1 |
| Power Outputs | 1 / 3 / 6 (24V DC) |
| Supported 4–20 mA Devices | 1 / 3 / 6 |
| Measuring Range | 3 mA – 21 mA DC |
| Power Consumption (excl. sensors) | 100 mA |
| Operating Temperature | 5 ℃ – 80 ℃ |
| Casing Material | PLA |
| Short Circuit Prevention | 24V 500mA Quick Blow Fuse (Inbuilt) |
| Reverse Voltage Protection | Inbuilt at Input |
